Mirror systems for buses: electronic, ergonomic, international
MEKRA Lang mirror systems for buses provide excellent visibility and enhanced safety as well as an attractive design and unparalleled functionality. Using various options, combinations and add-ons, vehicles can be customized to meet a wide range of requirements, including country-specific regulations.
Electronic accessories, such as cameras, entry lights, in-mirror park assist indicators and powered folding mirrors, offer superior ergonomics for the driver and comfort and convenience for the passengers.
MIRROR SYSTEMS
Mirror system

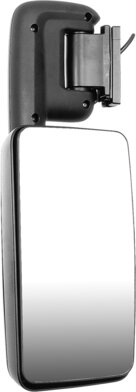

bus mirror 276
PRODUCT FAMILY: 276
FIELD OF VISION: CLASS II

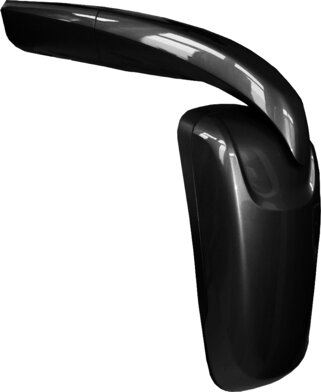

Mirror system

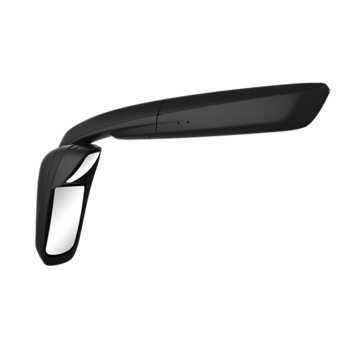

BUS MIRROR 291 + front crossview mirror
PRODUCT FAMILY: 291
FIELDS OF VISION: CLASS II + FRONT CROSSVIEW

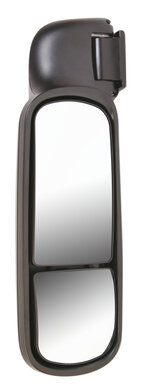

Mirror system

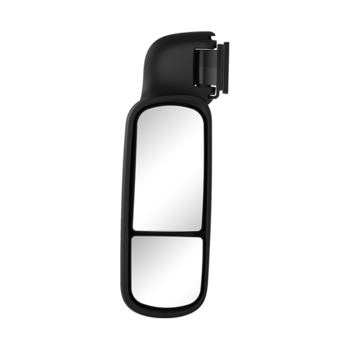

BUS MIRROR 278
PRODUCT FAMILY: 278
FIELDS OF VISION: CLASS II

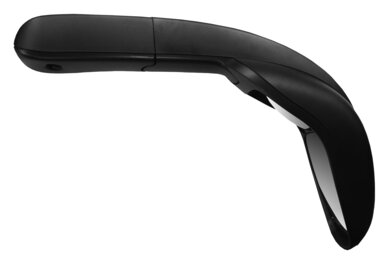

Mirror system

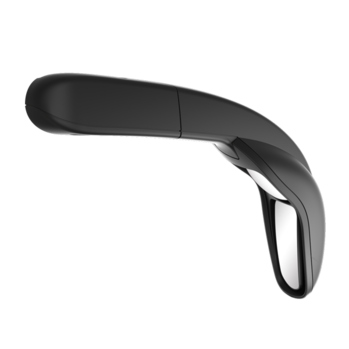

bus mirror 277
PRODUCT FAMILY: 277
FIELDS OF VISION: CLASS II + FRONT CROSSVIEW
Mirror system

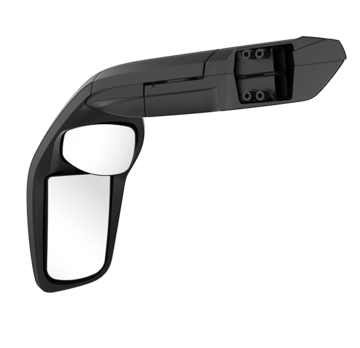

bus mirror 1041
Mirror system

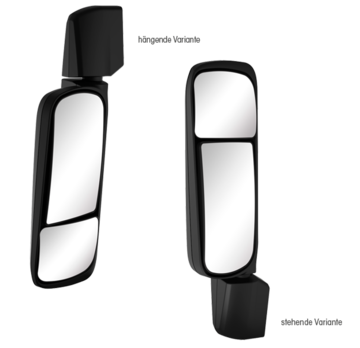

bus mirror 1042
276
General Info:
Part Info:
| 202760140 | cover 276 blk RH LHD in front | 0 mm x 157 x 267 | |
| 202760150 | cover 276 blk RH LHD behind | 0 mm x 157 x 267 | |
| 592760005001 | Bus mirror standing 276 radius 1200mm left | 0 mm x 0 mm x 0 mm | |
| 592760006001 | Bus mirror standing 276 radius 1200mm right | 0 mm x 0 mm x 0 mm | |
| 592760007001 | Bus mirror standing 276 radius 1200mm left | 0 mm x 240 x 600 | |
| 592761112 | Bus mirror hanging 276 radius 1800mm left | 0 mm x 0 mm x 0 mm | |
| 592761302 | Bus mirror standing 276 radius 1800mm left | 0 mm x 0 mm x 0 mm | |
| 592762101 | Bus mirror hanging 276 radius 1800mm left | 120 x 205 x 592 | |
| 592762302 | System 276 LH LHD el. standing | 0 mm x 0 mm x 0 mm | |
| 592762322 | Bus mirror standing 276 radius 1800mm left | 120 x 205 x 592 | |
| 592762422 | Bus mirror standing 276 radius 1800mm right | 120 x 205 x 592 | |
| 513731326 | Complete System 276 radius 1800mm left | 116 x 205 x 384 | |
| 513732326 | Complete System 276 radius 1800mm right | 116 x 205 x 384 |
291
General Info:
Part Info:
| 092910004099 | Control Cable 291 left and right | 0 mm x 0 mm x 0 mm | |
| 112910001000 | Cover 291 left | 66 x 105 x 597 | |
| 112910002000 | Cover 291 left | 105 x 112 x 617 | |
| 112910003000 | Cover 291 left | 146 x 112 x 651 | |
| 112910004000 | Cover 291 left | 123 x 112 x 509 | |
| 112910006000 | Cover 291 right | 66 x 105 x 597 | |
| 112910007000 | Cover 291 right | 105 x 112 x 617 | |
| 112910008000 | Cover 291 right | 146 x 112 x 651 | |
| 112910009000 | Cover 291 right | 123 x 112 x 509 | |
| 112910011002 | Cover 291 left | 121 x 225 x 514 | |
| 112910012002 | Cover 291 right | 121 x 225 x 514 | |
| 192910001099 | Glass unit 291 radius 300mm left and right | 31 x 154 x 184 | |
| 192910002099 | Glass unit 291 radius 200mm left and right | 39 x 172 x 184 | |
| 592910001001 | Bus mirror with Joint Arm 291 radius 1200/300mm left | 239 x 696 x 1196 | |
| 592910002001 | Bus mirror with Joint Arm 291 radius 1200/300mm right | 239 x 696 x 1196 | |
| 592910003001 | Bus mirror with Joint Arm 291 radius 1200/200mm left | 239 x 696 x 1196 | |
| 592910004001 | Bus mirror with Joint Arm 291 radius 1200/200mm right | 239 x 696 x 1196 | |
| 592910005001 | Bus mirror with Joint Arm 291 radius 1200/300mm left | 239 x 696 x 1196 | |
| 592910006001 | Bus mirror with Joint Arm 291 radius 1200/300mm right | 239 x 696 x 1196 | |
| 592910007001 | Bus mirror with Joint Arm 291 radius 1200/200mm left | 239 x 696 x 1196 | |
| 592910008001 | Bus mirror with Joint Arm 291 radius 1200/200mm right | 239 x 696 x 1196 | |
| 592910009001 | Bus mirror with Joint Arm 291 radius 1200/300mm left | 239 x 696 x 1196 | |
| 592910010001 | Bus mirror with Joint Arm 291 radius 1200/300mm right | 239 x 696 x 1196 | |
| 592910012001 | Bus mirror with Joint Arm 291 radius 1200/300mm right | 239 x 696 x 1196 | |
| 592910013001 | Bus mirror with Joint Arm 291 radius 1200/300mm left | 392 x 698 x 1245 | |
| 592910014001 | Bus mirror with Joint Arm 291 radius 1200/300mm right | 307 x 700 x 1202 | |
| 592910015001 | Bus mirror with Joint Arm 291 radius 1200/300mm left | 239 x 696 x 1196 | |
| 592910017001 | Bus mirror with Joint Arm 291 radius 1200/200mm left | 239 x 696 x 1196 | |
| 592910018001 | Bus mirror with Joint Arm 291 radius 1200/200mm right | 239 x 696 x 1196 | |
| 592910019001 | Bus mirror with Joint Arm 291 radius 1200/300mm left | 239 x 696 x 1196 | |
| 592910020001 | Bus mirror with Joint Arm 291 radius 1200/300mm right | 239 x 696 x 1196 | |
| 612910001001 | Mirror holder 291 left | 0 mm x 150 x 262 | |
| 612910002001 | Mirror holder 291 right | 0 mm x 150 x 262 | |
| 612910003001 | Mirror holder 291 left | 0 mm x 150 x 312 | |
| 612910004001 | Mirror holder 291 right | 0 mm x 150 x 312 | |
| 612910005001 | Mirror holder 291 left | 0 mm x 150 x 412 | |
| 612910006001 | Mirror holder 291 right | 0 mm x 150 x 412 | |
| 612910007001 | Mirror holder 291 left | 0 mm x 150 x 312 | |
| 612910008001 | Mirror holder 291 right | 0 mm x 150 x 312 | |
| 152780840 | Glass unit 291 radius 1200mm left and right | 22 x 178 x 309 | |
| 152780841F | Glass unit 291 radius 1200mm left and right | 22 x 178 x 309 | |
| 092770001000 | Supply Cable 291 left and right | 0 mm x 0 mm x 0 mm | |
| 083200233H | Mirror Switch 291 | 54 x 42 x 42 | |
| 615590001099 | Complete System 291 radius 200mm left and right | 82 x 165 x 256 | |
| 612910021001 | Mirror holder 291 left | 0 mm x 150 x 412 | |
| 612910022001 | Mirror holder 291 right | 0 mm x 150 x 412 | |
| 612910012002 | 123 mm x 509 mm x 112 mm |

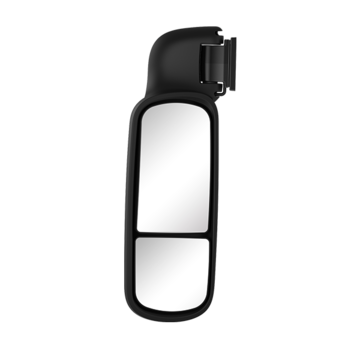

278
General Info:
Part Info:
| 112780510 | Cover 278 left | 115 x 229 x 682 | |
| 112780520 | Cover 278 right | 115 x 229 x 682 | |
| 112780910 | Cover 278 left | 104 x 229 x 681 | |
| 112780920 | Cover 278 right | 104 x 229 x 681 | |
| 152780870 | Glass unit 278 radius 300mm left and right | 34 x 177 x 177 | |
| 202780630 | 278 left and right | 21 x 59 x 124 | |
| 592780120 | Bus mirror hanging 278 radius 1200 / 300mm left | 174 x 247 x 684 | |
| 592780150001 | Bus mirror standing 278 radius 1200 / 300mm left | 174 x 247 x 684 | |
| 592780170001 | Bus mirror standing 278 radius 1200 / 300mm right | 174 x 247 x 684 | |
| 592780180001 | Bus mirror standing 278 radius 1200 / 300mm left | 174 x 247 x 684 | |
| 592780200001 | Bus mirror hanging 278 radius 1200 / 300mm right | 174 x 247 x 684 | |
| 592781120 | Bus mirror hanging 278 radius 1200 / 300mm right | 174 x 247 x 684 | |
| 592782120 | Bus mirror hanging 278 radius 1200 / 300mm left | 174 x 247 x 684 | |
| 085752012 | Actuator 575 left and right | 53 x 120 x 130 | |
| 202710620 | Mounting wedge with direct contact 278 left and right | 21 x 59 x 124 | |
| 202710630 | Mounting wedge with direct contact 271 left and right | 21 x 59 x 124 | |
| 202710650 | Mounting wedge with direct contact 278 left and right | 21 x 59 x 124 | |
| 592780120099 | Bus mirror hanging 278 radius 1200 / 300mm left | 174 x 247 x 684 |

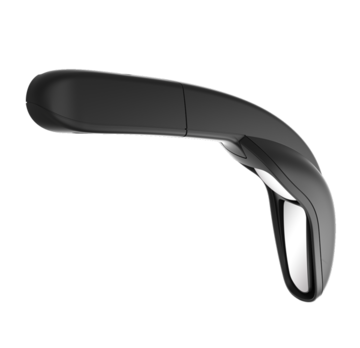

277
General Info:
Part Info:
| 082770001000 | Mirror Switch 277 left and right | 44 x 40 x 45 | |
| 092770110H | 277 | 0 mm x 0 mm x 0 mm | |
| 092770210 | Control Cable 277 left and right | 0 mm x 0 mm x 0 mm | |
| 092770211 | Control Cable 277 left and right | 0 mm x 0 mm x 0 mm | |
| 112770040 | 277 | 0 mm x 0 mm x 0 mm | |
| 112770102 | Frame 277 right | 185 x 123 x 707 | |
| 112770202 | Frame 277 right | 129 x 149 x 399 | |
| 112770302 | Frame 277 right | 118 x 151 x 268 | |
| 112770402 | Frame 277 right | 128 x 153 x 399 | |
| 112770920 | Cover 277 right | 237 x 254 x 669 | |
| 152771840 | Glass unit 277 radius 1200mm left and right | 23 x 183 x 307 | |
| 152771870 | Glass unit 277 radius 200mm left and right | 37 x 166 x 206 | |
| 592770210099 | Bus mirror with Joint Arm 277 radius 1200 / 200mm right | 254 x 720 x 1001 | |
| 592770211099 | Bus mirror with Joint Arm 277 radius 1200 / 200mm right | 254 x 720 x 1001 | |
| 592771210 | Bus mirror with Joint Arm 277 radius 1200 / 200mm right | 254 x 720 x 1001 | |
| 612770003002 | 277 left | 0 mm x 0 mm x 0 mm | |
| 612770210 | Mirror head without Glass unit 277 right | 253 x 280 x 670 | |
| 612770211 | Bracket 277 right | 130 x 192 x 817 | |
| 612770900099 | 277 | 0 mm x 0 mm x 0 mm | |
| 612770901099 | 277 | 0 mm x 0 mm x 0 mm | |
| 612772100 | Frame 277 right | 129 x 172 x 399 | |
| 612772211099 | Mirror head without Glass unit 277 right | 253 x 280 x 670 | |
| 082910001002 | Blinker lamp 277 left and right | 0 mm x 0 mm x 0 mm | |
| 092910003099 | Supply Cable 277 left and right | 0 mm x 0 mm x 0 mm | |
| 083950001099 | 277 | 30 x 30 x 40 | |
| 085752024099 | 277 left and right | 53 x 120 x 130 | |
| 592771210099 | 254 x 720 x 1001 | ||
| 592770310099 | 254 x 720 x 1001 |

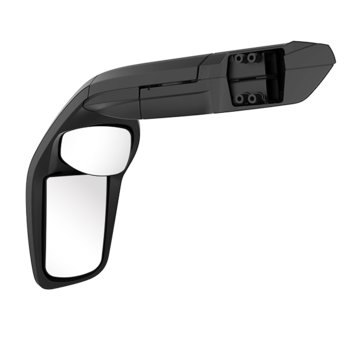

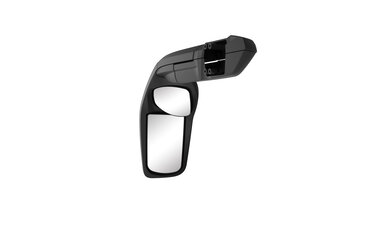

1041
General Info:
Part Info:
| 091041002099 | Control Cable 1041 radius HS 1.200 mmmm | 0 mm x 0 mm x 0 mm | |
| 591041001099 | Complete System 1041 radius 1200 / 200mm right | 250 x 907 x 636 | |
| 121041001099 | Cover 1041 | 165 x 643 x 274 | |
| 121041004099 | Cover 1041 | 75 x 349 x 113 | |
| 121041002099 | Cover 1041 | 63 x 313 x 114 | |
| 591041002099 | Complete System 1041 radius 1200 / 200mm right | 250 x 907 x 636 | |
| 121041005099 | Cover 1041 | 118 x 470 x 90 | |
| 121041003099 | Cover 1041 | 91 x 194 x 112 | |
| 091041004099 | Control Cable 1041 | 0 mm x 0 mm x 0 mm | |
| 591041004001 | 250 x 636 x 907 | ||
| 591041003099 | 250 mm x 636 mm x 907 mm |

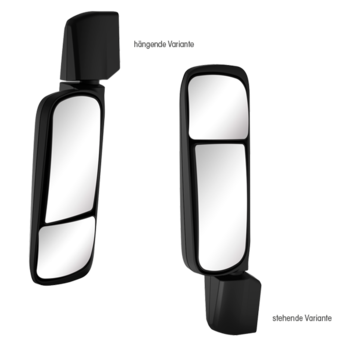

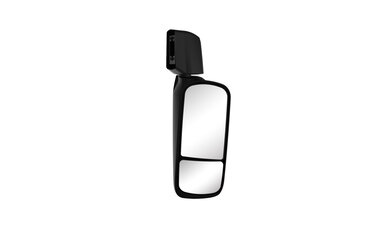

1042
General Info:
Part Info:
| 201042002099 | Mounting wedge with direct contact 1042 | 24 x 50 x 109 | |
| 201042003099 | Mounting wedge with direct contact 1042 | 24 x 50 x 109 | |
| 591042001099 | Complete System 1042 radius 1200 / 300mm left | 237 x 176 x 685 | |
| 591042002099 | Complete System 1042 radius 1200 / 300mm right | 237 x 176 x 685 | |
| 591042003099 | Complete System 1042 radius 1200 / 300mm left | 237 x 176 x 685 | |
| 591042004099 | Complete System 1042 radius 1200 / 300mm right | 237 x 176 x 685 | |
| 121042001099 | Cover 1042 left | 87 x 232 x 528 | |
| 611042006099 | Cover 1042 right | 163 x 160 x 167 | |
| 121042002099 | Cover 1042 right | 87 x 232 x 528 | |
| 591042005099 | Complete System 1042 radius 1200/300mm left | 176 x 237 x 685 | |
| 611042005099 | Cover 1042 left and right | 111 x 172 x 127 |

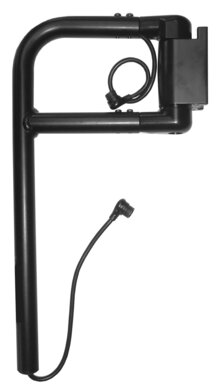

MOUNTING SYSTEM
mounting system
mirror mounting system 270
PRODUCT FAMILY: 270
270 A
General Info:
Part Info:
Please refer to our current bus catalog for a complete overview of our product portfolio which is available via our extensive network of authorized distributors:
